MPM-08S-12MB | AC/DC | Aus: 12 V DC | MicroPower Direct

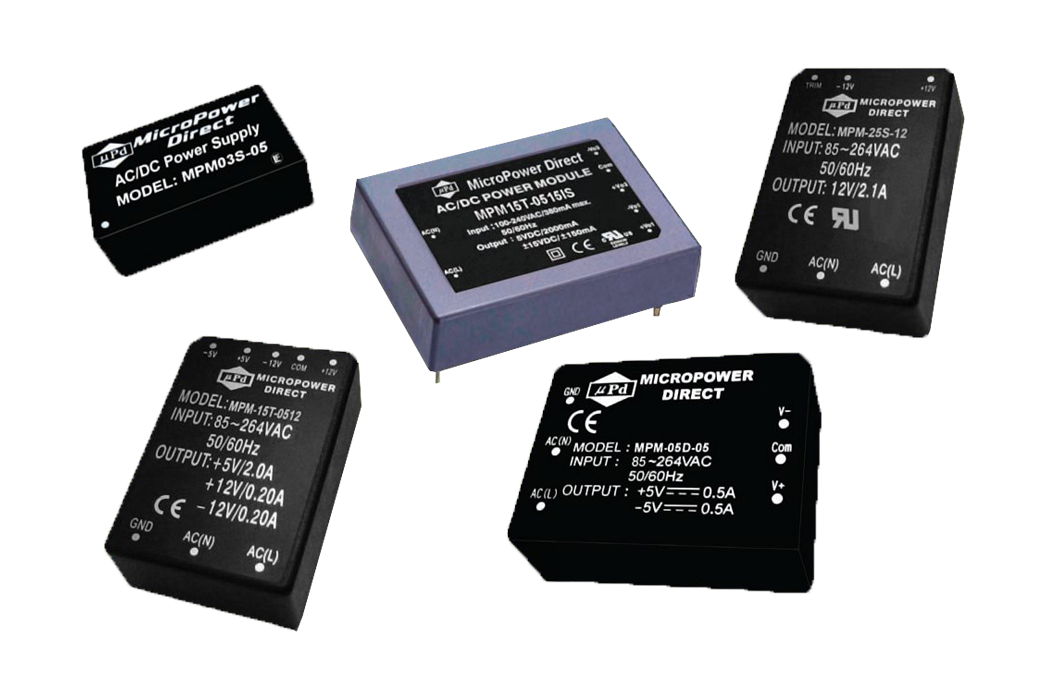

1 - 40 Watt geregeltes AC-DC Netzteil mit Einfach-, Zweifach- und Dreifachausgang für die Printmontage


Glossar: AC/DC-Schaltnetzteile, Inhalt
Serie MPM
Ausgangsleistung 8 W
Ausgangsspannung 12 V DC
Ausgangsstrom 0,66 A
Ausgänge 1
Typ Quelle
Bauform Printmontage
Eingang AC
Kategorie AC/DC
Beschreibung • Weitbereichseingang 85-264 VAC (85-305 VAC Modelle 1 Watt und 2 Watt), 47-440 Hz (alternativ DC-Versorgung mit 120-370 VDC)
• Abmessungen MPM15 CM: 96.7 x 54.0 x 23.3 mm (mit Hutschienenkit MPDRK-15: 96.7 x 54.0 x 34.3 mm)
• 3000 VAC Ein-/Ausgangsisolation
• Abmessungen MPM30 CM: 112.0 x 63.8 x 25.6 mm (mit Hutschienenkit MPDRK-30: 112.0 x 63.8 x 36.6 mm)
• Umgebungstemperaturen ab -40°C bis +85°C, ohne derating ab -25 °C bis zu +70 °C (modellabhängig)
Technologie Getaktet
Schutzmechanismen Ausgang kurzschlussfest
Produktalternative MPS, MPSU, MPB
Arbeitstemperatur -40 °C bis +85 °C, ohne Derating -25 °C bis zu +70 °C (modellabhängig) (Umgebung)
Bauform Detail Zoll 1,9x1,4
Anwendung Industrie / Handel
SubKategorie AC-DC Netzteil|OEM Stromversorgung|AC/DC-Wandler|Gleichspannungsnetzteil
Abmessungen Kommentar MPM04V|MPM05|MPM05PB|MPM07 PB|MPM08 MB|MPM08 PB|MPM10|MPM10 IS|MPM10 EPB|MPM15 IS|MPM02V|MPM03|MPM04|MPM20 EPB|MPM20 PB|MPM25 S|MPM15|MPM04E|MPM01V|MPM30 IS|MPM40|MPM60 PB|MPM04V|MPM05|MPM05PB|MPM07 PB|MPM08 MB|MPM08 PB|MPM10|MPM10 IS|MPM10 EPB|MPM15 IS|MPM02V|MPM03|MPM04|MPM20 EPB|MPM20 PB|MPM25 S|MPM15|MPM04E|MPM01V|MPM30 IS|MPM40|MPM60 PB|MPM04V|MPM05|MPM05PB|MPM07 PB|MPM08 MB|MPM08 PB|MPM10|MPM10 IS|MPM10 EPB|MPM15 IS|MPM02V|MPM03|MPM04|MPM20 EPB|MPM20 PB|MPM25 S|MPM15|MPM04E|MPM01V|MPM30 IS|MPM40|MPM60 PB
Abmessungen Länge 36,5 mm|48,5 mm|50,8 mm|64,0 mm|53,5 mm|74,0 mm|33,7 mm|37,0 mm|52,4 mm|70,0 mm|62,0 mm|88,9 mm|89,0 mm|109,0 mm
Abmessungen Breite 27,0 mm|36,0 mm|25,4 mm|45,0 mm|28,5 mm|54,0 mm|22,2 mm|23,0 mm|27,2 mm|48,0 mm|63,5 mm|58,5 mm
Abmessungen Höhe 17,1 mm|20,5 mm|15,16 mm|19,3 mm|26, mm|19,0 mm|18,0 mm|15,0 mm|23,50 mm|23,5 mm|22,5 mm|21,5 mm|25,0 mm|30, mm
* Weitbereichseingang 85-264 VAC (85-305 VAC Modelle 1 Watt und 2 Watt), 47-440 Hz (alternativ... mehr
Produktinformationen "MPM-08S-12MB | AC/DC | Aus: 12 V DC | MicroPower Direct"
SerieAusgangsspannungAusgangsstromAusgangsleistungAusgänge
MPM-24-48 V DC0,042-1200 A1-60 W0-3
-24; -15; -12; -5; 3.3; 5; 7; 8; 9; 12; 14; 15; 24; 480.042; 0.05; 0.067; 0.08; 0.083; 0.1; 0.111; 0.12; 0.133; 0.15; 0.16; 0.166; 0.167; 0.2; 0.21; 0.222; 0.23; 0.25; 0.267; 0.286; 0.29; 0.3; 0.31; 0.32; 0.33; 0.333; 0.34; 0.35; 0.38; 0.4; 0.416; 0.42; 0.444; 0.45; 0.47; 0.5; 0.53; 0.55; 0.58; 0.6; 0.625; 0.65; 0.66; 0.666; 0.67; 0.7; 0.8; 0.83; 0.833; 0.88; 0.89; 0.9; 1; 1.1; 1.2; 1.25; 1.3; 1.33; 1.333; 1.4; 1.5; 1.6; 1.66; 1.666; 1.667; 2; 2.1; 2.5; 2.666; 2.8; 3; 3.333; 3.6; 4; 4.1; 4.444; 5; 6; 6.66; 8; 10; 120; 150; 167; 267; 286; 333; 444; 500; 800; 12001; 1.65; 2; 3; 4; 5; 7; 8; 10; 15; 20; 25; 30; 40; 600; 1; 2; 3
ModellAusgangsspannungAusgangsstromAusgangsleistungAusgänge
MPDRK-1515 W0 m
MPDRK-3030 W0 m
MPL-03S-03EUP3,3 V DC0,5 A1,65 W1
MPM-01SV-033,3 V DC0,3 A1 W1
MPM-01SV-055 V DC0,2 A1 W1
MPM-01SV-099 V DC0,111 A1 W1
MPM-01SV-1212 V DC83 mA1 W1
MPM-01SV-1515 V DC67 mA1 W1
MPM-01SV-2424 V DC42 mA1 W1
MPM-02SV-033,3 V DC0,6 A2 W1
MPM-02SV-055 V DC0,4 A2 W1
MPM-02SV-099 V DC0,222 A2 W1
MPM-02SV-1212 V DC0,167 A2 W1
MPM-02SV-1515 V DC0,133 A2 W1
MPM-02SV-2424 V DC83 mA2 W1
MPM-03S-033,3 V DC0,7 A3 W1
MPM-03S-055 V DC0,6 A3 W1
MPM-03S-099 V DC0,33 A3 W1
MPM-03S-1212 V DC0,25 A3 W1
MPM-03S-1515 V DC0,2 A3 W1
MPM-03S-2424 V DC0,12 A3 W1
MPM-04D-05035 V DC|3,3 V DC600 A|150 A4 W2
MPM-04D-0503E5 V DC|3,3 V DC0,6 A|0,15 A4 W2
MPM-04D-08058 V DC|5 V DC375 A|120 A4 W2
MPM-04D-120512 V DC|5 V DC250 A|120 A4 W2
MPM-04D-1205E12 V DC|5 V DC0,25 A|0,12 A4 W2
MPM-04D-12E12 V DC|-12 V DC0,166 A|0,166 A4 W2
MPM-04D-15E15 V DC|-15 V DC0,133 A|0,133 A4 W2
MPM-04DV-05035 V DC|3,3 V DC0,6 A4 W2
MPM-04DV-08058 V DC|5 V DC0,375 A|0,15 A4 W2
MPM-04DV-120512 V DC|5 V DC0,25 A|0,12 A4 W2
MPM-04S-033,3 V DC1,2 kA4 W1
MPM-04S-03E3,3 V DC1,2 A4 W1
MPM-04S-055 V DC800 A4 W1
MPM-04S-05E5 V DC0,8 A4 W1
MPM-04S-088 V DC500 A4 W1
MPM-04S-099 V DC444 A4 W1
MPM-04S-09E9 V DC0,444 A4 W1
MPM-04S-1212 V DC333 A4 W1
MPM-04S-12E12 V DC0,333 A4 W1
MPM-04S-1414 V DC286 A4 W1
MPM-04S-1515 V DC267 A4 W1
MPM-04S-15E15 V DC0,267 A4 W1
MPM-04S-2424 V DC167 A4 W1
MPM-04S-24E24 V DC0,167 A4 W1
MPM-04SV-033,3 V DC1,2 A4 W1
MPM-04SV-055 V DC0,8 A4 W1
MPM-04SV-088 V DC0,5 A4 W1
MPM-04SV-099 V DC0,444 A4 W1
MPM-04SV-1212 V DC0,333 A4 W1
MPM-04SV-1414 V DC0,286 A4 W1
MPM-04SV-1515 V DC0,267 A4 W1
MPM-04SV-2424 V DC0,167 A4 W1
MPM-05D-055 V DC|-5 V DC0,5 A|0,5 A5 W2
MPM-05D-1212 V DC|-12 V DC0,21 A|0,21 A5 W2
MPM-05D-1515 V DC|-15 V DC0,16 A|0,16 A5 W2
MPM-05S-033,3 V DC1 A5 W1
MPM-05S-03PB3,3 V DC0,12 A5 W1
MPM-05S-055 V DC1 A5 W1
MPM-05S-05PB5 V DC1 A5 W1
MPM-05S-09PB9 V DC0,55 A5 W1
MPM-05S-1212 V DC0,42 A5 W1
MPM-05S-12PB12 V DC0,42 A5 W1
MPM-05S-1515 V DC0,33 A5 W1
MPM-05S-15PB15 V DC0,33 A5 W1
MPM-05S-2424 V DC0,23 A5 W1
MPM-05S-24PB24 V DC0,23 A5 W1
MPM-05T-05055 V DC|5 V DC|-5 V DC0,9 A|0,1 A|0,1 A5 W3
MPM-05T-05125 V DC|12 V DC|-12 V DC0,7 A|0,1 A|0,1 A5 W3
MPM-05T-05155 V DC|15 V DC|-15 V DC0,7 A|0,08 A|0,08 A5 W3
MPM-05T-05245 V DC|24 V DC|-24 V DC0,7 A|0,05 A|0,05 A5 W3
MPM-07S-03PB3,3 V DC1,4 A7 W1
MPM-07S-05PB5 V DC1,4 A7 W1
MPM-07S-12PB12 V DC0,58 A7 W1
MPM-07S-15PB15 V DC0,47 A7 W1
MPM-07S-24PB24 V DC0,29 A7 W1
MPM-08D-0503MB5 V DC|3,3 V DC1,6 A|0,31 A8 W2
MPM-08D-0503PB5 V DC|3,3 V DC1,6 A|0,31 A8 W2
MPM-08D-1205MB12 V DC|5 V DC0,66 A|0,1 A8 W2
MPM-08D-1205PB12 V DC|5 V DC0,67 A|0,2 A8 W2
MPM-08D-1207PB12 V DC|7 V DC0,56 A|0,25 A8 W2
MPM-08S-03MB3,3 V DC2 A8 W1
MPM-08S-03PB3,3 V DC2 A8 W1
MPM-08S-05MB5 V DC1,6 A8 W1
MPM-08S-05PB5 V DC1,6 A8 W1
MPM-08S-09MB9 V DC0,88 A8 W1
MPM-08S-09PB9 V DC0,89 A8 W1
MPM-08S-12MB12 V DC0,66 A8 W1
MPM-08S-12PB12 V DC0,67 A8 W1
MPM-08S-15MB15 V DC0,53 A8 W1
MPM-08S-15PB15 V DC0,5 A8 W1
MPM-08S-24MB24 V DC0,33 A8 W1
MPM-08S-24PB24 V DC0,34 A8 W1
MPM-10D-055 V DC|-5 V DC1 A|1 A10 W2
MPM-10D-05055 V DC|5 V DC1,8 A|0,20 A10 W2
MPM-10D-05125 V DC|12 V DC1,5 A|0,20 A10 W2
MPM-10D-05155 V DC|15 V DC1,4 A|0,20 A10 W2
MPM-10D-05245 V DC|24 V DC1 A|0,20 A10 W2
MPM-10D-1212 V DC|-12 V DC0,45 A|0,45 A10 W2
MPM-10D-12IS12 V DC|-12 V DC0,38 A|0,38 A10 W2
MPM-10D-1515 V DC|-15 V DC0,35 A|0,35 A10 W2
MPM-10D-15IS15 V DC|-15 V DC0,3 A|0,3 A10 W2
MPM-10S-033,3 V DC2 A10 W1
MPM-10S-03EPB3,3 V DC1,25 A10 W1
MPM-10S-03IS3,3 V DC2 A10 W1
MPM-10S-03PB3,3 V DC2 A10 W1
MPM-10S-055 V DC2 A10 W1
MPM-10S-05EPB5 V DC1 A10 W1
MPM-10S-05IS5 V DC2 A10 W1
MPM-10S-05PB5 V DC2 A10 W1
MPM-10S-099 V DC1,1 A10 W1
MPM-10S-09EPB12 V DC0,55 A10 W1
MPM-10S-09PB12 V DC1,1 A10 W1
MPM-10S-1212 V DC0,9 A10 W1
MPM-10S-12EPB12 V DC0,42 A10 W1
MPM-10S-12IS12 V DC0,833 A10 W1
MPM-10S-12PB12 V DC0,9 A10 W1
MPM-10S-1515 V DC0,7 A10 W1
MPM-10S-15EPB15 V DC0,33 A10 W1
MPM-10S-15IS15 V DC0,666 A10 W1
MPM-10S-15PB15 V DC0,7 A10 W1
MPM-10S-2424 V DC0,45 A10 W1
MPM-10S-24EPB24 V DC0,23 A10 W1
MPM-10S-24IS24 V DC0,416 A10 W1
MPM-10S-24PB24 V DC0,45 A10 W1
MPM-10T-05055 V DC|5 V DC|-5 V DC1,8 A|0,1 A|0,1 A10 W3
MPM-10T-05125 V DC|12 V DC|-12 V DC1,6 A|0,1 A|0,1 A10 W3
MPM-10T-05155 V DC|15 V DC|-15 V DC1,4 A|0,1 A|0,1 A10 W3
MPM-10T-05245 V DC|24 V DC|-24 V DC1 A|0,1 A|0,1 A10 W3
MPM-15D-055 V DC|-5 V DC1,5 A|1,5 A15 W2
MPM-15D-1212 V DC|-12 V DC0,65 A|0,65 A15 W2
MPM-15D-12CM12 V DC|-12 V DC0,625 A|0,625 A15 W2
MPM-15D-12IS12 V DC|-12 V DC0,625 A|0,625 A15 W2
MPM-15D-1515 V DC|-15 V DC0,5 A|0,5 A15 W2
MPM-15D-15CM15 V DC|-15 V DC0,5 A|0,5 A15 W2
MPM-15D-15IS15 V DC|-15 V DC0,5 A|0,5 A15 W2
MPM-15S-033,3 V DC3 A15 W1
MPM-15S-055 V DC2,8 A15 W1
MPM-15S-05CM5 V DC3 A15 W1
MPM-15S-05IS5 V DC3 A15 W1
MPM-15S-1212 V DC1,25 A15 W1
MPM-15S-12CM12 V DC1,25 A15 W1
MPM-15S-12IS12 V DC1,25 A15 W1
MPM-15S-1515 V DC1 A15 W1
MPM-15S-15CM15 V DC1 A15 W1
MPM-15S-15IS15 V DC1 A15 W1
MPM-15S-2424 V DC0,625 A15 W1
MPM-15S-24CM24 V DC0,625 A15 W1
MPM-15S-24IS24 V DC0,625 A15 W1
MPM-15S-4824 V DC0,32 A15 W1
MPM-15S-48CM48 V DC0,31 A15 W1
MPM-15S-48IS48 V DC0,31 A15 W1
MPM-15T-05055 V DC|5 V DC|-5 V DC2,6 A|0,2 A|0,2 A15 W3
MPM-15T-05125 V DC|12 V DC|-12 V DC2 A|0,2 A|0,2 A15 W3
MPM-15T-0512CM5 V DC|12 V DC|-12 V DC2 A|0,2 A|0,2 A15 W3
MPM-15T-0512IS5 V DC|12 V DC|-12 V DC0,2 A|0,2 A|0,2 A15 W3
MPM-15T-05155 V DC|15 V DC|-15 V DC1,8 A|0,2 A|0,2 A15 W3
MPM-15T-0515CM5 V DC|15 V DC|-15 V DC1,8 A|0,15 A|0,15 A15 W3
MPM-15T-0515IS5 V DC|15 V DC|-15 V DC1,8 A|1,5 A|1,5 A15 W3
MPM-15T-05245 V DC|24 V DC|-24 V DC2 A|0,1 A|0,1 A15 W3
MPM-20S-03EPB3,3 V DC3,6 A20 W1
MPM-20S-03PB3,3 V DC3,6 A20 W1
MPM-20S-05EPB5 V DC3,6 A20 W1
MPM-20S-05PB5 V DC3,6 A20 W1
MPM-20S-12EPB12 V DC1,66 A20 W1
MPM-20S-12PB12 V DC1,66 A20 W1
MPM-20S-15EPB15 V DC1,33 A20 W1
MPM-20S-15PB15 V DC1,33 A20 W1
MPM-20S-24EPB24 V DC0,83 A20 W1
MPM-20S-24PB24 V DC0,83 A20 W1
MPM-25S-055 V DC4,1 A25 W1
MPM-25S-1212 V DC2,1 A25 W1
MPM-25S-1515 V DC1,6 A25 W1
MPM-25S-2424 V DC1,1 A25 W1
MPM-25S-4848 V DC0,5 A25 W1
MPM-30D-12CM12 V DC|-12 V DC1,3 A|1,3 A30 W2
MPM-30D-12IS12 V DC|-12 V DC1,3 A|1,3 A30 W2
MPM-30D-15CM15 V DC|-15 V DC1 A|1 A30 W2
MPM-30D-15IS15 V DC|-15 V DC1 A|1 A30 W2
MPM-30S-05CM5 V DC6 A30 W1
MPM-30S-05IS5 V DC6 A30 W1
MPM-30S-12CM12 V DC2,5 A30 W1
MPM-30S-12IS12 V DC2,5 A30 W1
MPM-30S-15CM15 V DC2 A30 W1
MPM-30S-15IS15 V DC2 A30 W1
MPM-30S-24CM24 V DC1,25 A30 W1
MPM-30S-24IS24 V DC1,25 A30 W1
MPM-30S-48CM48 V DC0,625 A30 W1
MPM-30S-48IS48 V DC0,625 A30 W1
MPM-30T-0512CM5 V DC|12 V DC|-12 V DC3 A|0,6 A|0,6 A30 W3
MPM-30T-0512CMA5 V DC|12 V DC|-12 V DC3 A|1 A|0,25 A30 W3
MPM-30T-0512IS5 V DC|12 V DC|-12 V DC3 A|0,6 A|0,6 A30 W3
MPM-30T-0512ISA5 V DC|12 V DC|-12 V DC3 A|1 A|0,25 A30 W3
MPM-30T-0515CM5 V DC|15 V DC|-15 V DC3 A|0,5 A|0,5 A30 W3
MPM-30T-0515IS5 V DC|15 V DC|-15 V DC3 A|0,5 A|0,5 A30 W3
MPM-30T-3512CM3,3 V DC|5 V DC|12 V DC4,5 A|1,5 A|0,25 A30 W3
MPM-30T-3512IS3,3 V DC|5 V DC|12 V DC4,5 A|1,5 A|0,25 A30 W3
MPM-30T-5312CM5 V DC|3,3 V DC|12 V DC4,5 A|1 A|0,25 A30 W3
MPM-30T-5312IS5 V DC|3,3 V DC|12 V DC4,5 A|1 A|0,25 A30 W3
MPM-40D-055 V DC|-5 V DC4 A|4 A40 W2
MPM-40D-05125 V DC|12 V DC5 A|1,25 A40 W2
MPM-40D-05245 V DC|24 V DC5 A|0,625 A40 W2
MPM-40D-1212 V DC|-12 V DC1,666 A|1,666 A40 W2
MPM-40D-1515 V DC|-15 V DC1,333 A|1,333 A40 W2
MPM-40S-033,3 V DC8 A40 W1
MPM-40S-055 V DC8 A40 W1
MPM-40S-099 V DC4,444 A40 W1
MPM-40S-1212 V DC3,333 A40 W1
MPM-40S-1515 V DC2,666 A40 W1
MPM-40S-2424 V DC1,667 A40 W1
MPM-40T-05125 V DC|12 V DC|-12 V DC5 A|0,6 A|0,6 A40 W3
MPM-40T-05155 V DC|15 V DC|-15 V DC5 A|0,5 A|0,5 A40 W3
MPM-60S-05PB5 V DC10 A60 W1
MPM-60S-09PB9 V DC6,66 A60 W1
MPM-60S-12PB12 V DC5 A60 W1
MPM-60S-15PB15 V DC4 A60 W1
MPM-60S-24PB24 V DC2,5 A60 W1
MPM-60S-48PB48 V DC1,25 A60 W1
